Hydro Cyclone Cones are basically to separate liquid from earth. During suction it is very critical to have a system that will operate efficiently. We manufacturer Hydro Cyclone Cone Assemblies i.e. Desanders and Desilters. The separation process is carried out by employing centrifugal forces. The angle of the fluid entry has been specifically designed to facilitate the flow and separation. The Cones are made of high durameter polyurethane with optional steel inserts, which ensure consistent productivity.

Desander Cones remove abrasive, coarse solid particles upto 60 microns.
Desander Cones are available in 10" attachments with a 4" inlet and 6" outlet.
Desilter Cones remove fine sand and silt down to 20 microns.
Desilter Cones are available of 4" size that have a 2" inlet and a 2" outlet.

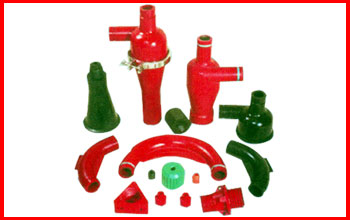

PARTS OF HYDRO CYCLONE CONE ASSEMBLY

Kem-tron Desilter Cones
We have the following cones in our Ex-stock range : Kem-tron KTL48B Shaker
4" Desilter Cone Assembly


 No.

Description for 10", 16 or 20" Cone Desilters

Part No.
1

4" Inlet

KTH-4-001 MRT 1102/108
2 4" Body KTH-4-002 MRT 1102/107
3 Apex Nut KTH-4-003 MRT 1102/106
4 apex Wear Insert KTH-4-004 MRT 1102/109
5 Stainless Steel Clamp KTH-4-005 MRT 1102/110
6 2" Groove Lock Overflow Elbow KTH-GL-203 MRT 1102/192


Derrick 4" Desilter Cone Assembly


 No.

Description for 10", 16 or 20" Cone Desilters

Part No.
1

Body

10523-00 MRT 1102/132
2 Circular Cone 10523-01 MRT 1102/134
3 Mud Cleaner Nut 10523-03 MRT 1102/133
4 Elbow 10523-02 MRT 1102/193


Derrick 10" Desilter Cone Assembly


1

Cone Top Section

10 T. S
